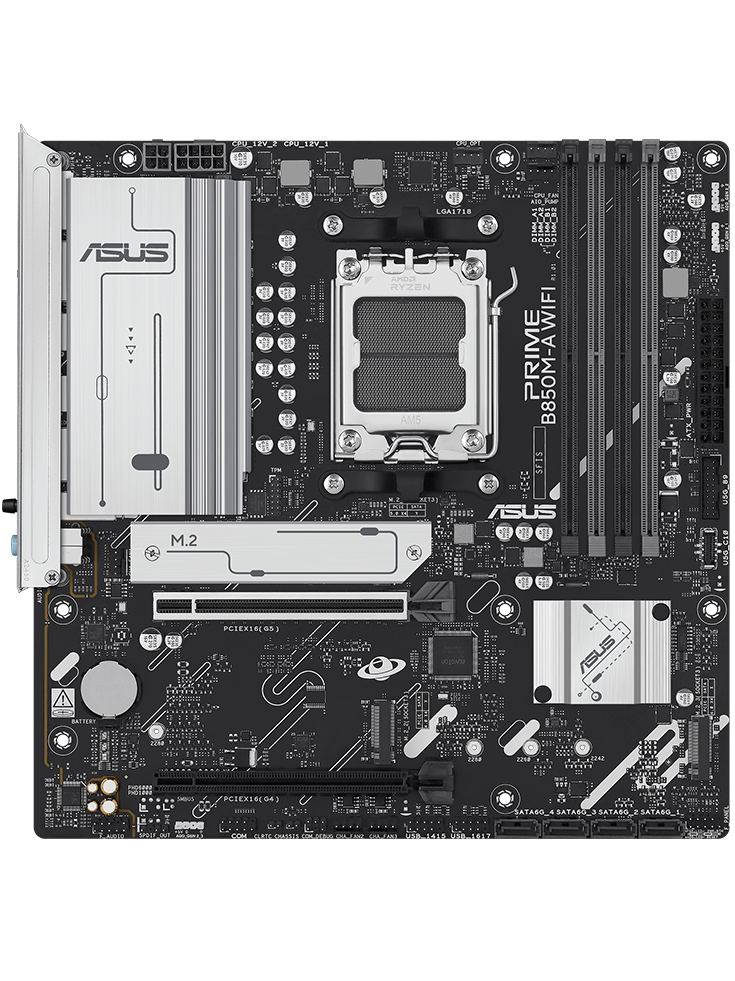

The Prime B850M-A WiFi is a motherboard like no other. Designed to support AMD’s latest processors, this motherboard offers a blend of performance, connectivity, and reliability, catering to all your computing needs.

Performance

The ASUS PRIME B850M-A WIFI is engineered around an 8+2+1 power stage layout. It utilizes discrete MOSFETs rather than more expensive DrMOS integrated stages. This configuration is perfectly optimized for mainstream 65W and 120W processors, such as the Ryzen 5 9600X or Ryzen 7 9700X. Under gaming workloads, the power delivery remains stable, maintaining factory boost clocks without throttling.

For system memory, the board relies on a 6-layer PCB design. This structural layout shields memory signal traces from electromagnetic interference. When paired with AMD EXPO profiles, it achieves stable DDR5 overclocks up to 8000+ MT/s. However, because of the discrete MOSFET configuration, this board is not suited for continuous, heavy rendering workloads on 16-core Ryzen 9 chips, nor does it support aggressive manual CPU voltage overclocking.

The built-in WiFi 6 connectivity is the cherry on top. With improved speeds, reduced latency, and better performance in crowded areas, streaming your late-night shows while downloading the latest game patch won’t be an issue. Say goodbye to tangled Ethernet cables and hello to a more liberated setup!

Cooling

The thermal design relies on two dedicated VRM heatsinks equipped with high-quality thermal pads. These heatsinks manage the heat generated by the MOSFETs during extended gaming sessions. For storage longevity, the primary M.2 slot features a dedicated passive heatsink to prevent high-speed PCIe 5.0 SSDs from thermal throttling.

System fan management is controlled via Fan Xpert 2+ within the ASUS Armoury Crate software or directly inside the UEFI BIOS. The motherboard provides multiple onboard 4-pin PWM/DC fan headers that dynamically adjust fan speeds based on real-time temperature sensors placed across key zones of the PCB.

Flexibility

This motherboard maximizes expansion capability within the compact Micro-ATX form factor. Its standout feature is the PCIe 5.0 x16 slot, offering twice the bandwidth of PCIe 4.0 to support next-generation graphics cards. Storage flexibility is similarly advanced, featuring three M.2 slots total:

• 1 x Hyper M.2 slot (PCIe 5.0 x4 mode)
• 2 x Ultra M.2 slots (PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports for older mechanical drives or 2.5-inch SSDs

The rear I/O panel includes a dedicated USB Type-C® port for modern high-speed peripherals. For networking, it includes an Intel Wi-Fi 6E module that accesses the less-congested 6GHz band, alongside a Realtek 2.5Gb Ethernet port for low-latency wired connections.

Customization

Aesthetics and system tuning are handled through both physical headers and software integration. The board features addressable Gen 2 RGB headers, which automatically detect the number of LEDs on connected light strips or ARGB fans. These are fully customizable using ASUS Aura Sync, allowing you to synchronize lighting patterns across your entire ecosystem of compatible components.

For system tuning, the ASUS UEFI BIOS provides two distinct entry levels:

• EZ Mode: A simplified interface displaying vital stats (temperatures, fan speeds, boot priority) where you can enable AMD EXPO memory profiles with a single click.
• Advanced Mode: Gives experienced builders deep control over individual voltage offsets, precision boost overdrive (PBO) parameters, and detailed peripheral configurations.
• BIOS FlashBack™: A rear-panel physical button that lets you update the motherboard firmware using only a USB thumb drive and a power supply—no CPU or RAM required.

Features

The ASUS PRIME B850M-A WIFI has a number of features that make it a good choice for gamers. These features include:

Chipset – AMD B850 Chipset

Memory – 4 x DIMM slots, max. 256GB, DDR5

Expansion Slots – 1 x PCIe 5.0 x16 slot (supports x16 modes), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) , 1 x PCIe 4.0 x16 slot (supports x1 mode) – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage – Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Ethernet/Wireless/Bluetooth – 1 x Intel® 2.5Gb Ethernet ASUS LANGuard,  2×2 Wi-Fi 6E* (802.11ax), Supports 2.4/5/6GHz frequency band*, Bluetooth® v5.3*

USB – 8 Rear USB(Total), 7 Front USB (Total)

Conclusion

The ASUS PRIME B850M-A WIFI stands out as a highly practical, forward-looking foundation for mainstream builders moving to the AMD AM5 platform. Its excellent connectivity options, user-friendly installation, and decent performance make it the perfect motherboard for gamers, content creators, and general users alike.
